Configure Component Data Extract

   MaestroThe UI design product.  |    Form Builder  |   18.05 This feature was updated in 18.05.

Merged with Integration pane



Manager allows you to configure component's data extract so you can specify what will be sent to Manager as a part of a form submission.

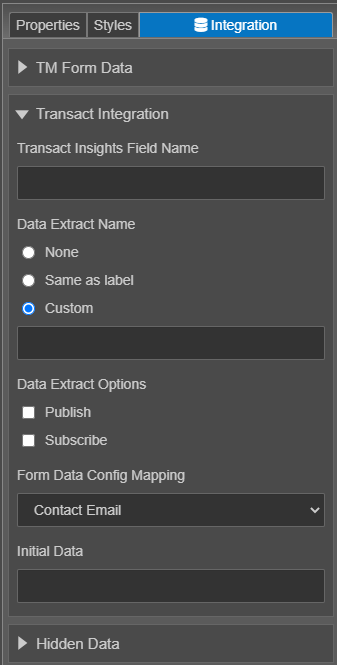

To configure a component's data extract:

1. Open a Maestro form and select a component.
2. Click the Integration tab and expand the Transact Integration section.



3. Provide a field name in the Transact Insights FieldName field that is used for integration with Journey Analytics.
4. Select None to exclude the component in the data extract. This is the default option.
5. Same as label includes the selected component in the data extract and it uses the component’s label name as the extract name, for example Save and Close, in the Manager.
6. Custom includes the selected component in the data extract and provides a text field for you to enter a component name to be used in Manager. Enter a component name, for example, Save and Close.
7. Expand the Data Extract Options, which only visible if Same as label or Custom is selected.
• Searchable - the whole data extract value can be used for as search criteria in the Manager.  |  18.05 This feature was removed in 18.05
• Publish is used by Collaboration Jobs in conjunction with the Subscribe option. Using Publish and Subscribe is an alternative mechanism to share data between tasks in a Form Bundle - Job Step.
• Subscribe consumes the publish event using the published value.
8. Click Build and Render Form to see how this rule is displayed when the form is built and rendered. Test out the form data extracts by completing and submitting a form.

Next, learn about submissions data extract.
